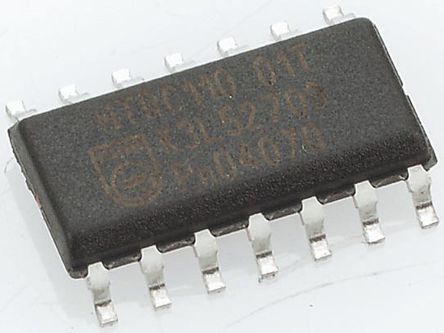

74HC164D - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC12085707
Category:
Shift Register IC
Package:
SOIC-14
Datasheet:
Datasheet 3D Model
Description:
IC HC/UH SERIES, 8Bit RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO14, 3.9MM, PLASTIC, MS-012, SOT108-1, SOP-14, Shift Register
Stock Locations:
Availability:
312 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 74HC164D is a 8-bit serial-in/parallel-out Shift Register features two serial data inputs (DSA and DSB), eight parallel data outputs (Q0 to Q7). Data is entered serially through DSA or DSB and either input can be used as an active high enable for data entry through the other input. Data is shifted on the low-to-high transitions of the clock (CP) input. A low on the master reset input (MR) clears the register and forces all outputs low, independently of other inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
CMOS Input level
Gated serial data inputs
Asynchronous master reset
Complies with JEDEC standard No. 7A

Show

74HC164D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Frequency	78.0 MHz
Supply Voltage (DC)	5.00 V
Number of Circuits	8 Circuit
Number of Positions	14 Position
Number of Bits	8 Bit
Number of Gates	1 Gate
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2 V
	Show
Size-Length	8.75 mm
Size-Width	4 mm
Size-Height	1.45 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
