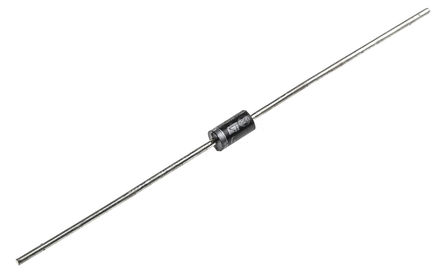

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 1N5818 is an axial low-drop power Schottky Rectifier suitable for SWITCHMODE™ power supplies and high frequency DC to DC converters. It is intended for use in low voltage, high frequency inverters, free-wheeling, polarity protection and small battery chargers.
Very small conduction losses
Negligible switching losses
Extremely fast switching
Low forward voltage drop
Avalanche capability specified

Show

1N5818 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-204AL
Voltage Rating (DC)	30.0 V
Current Rating	1.00 A
Output Current	≤1.00 A
Number of Positions	2 Position
Forward Voltage	500mV @1A
Polarity	Standard
Power Dissipation	1.25 W
Thermal Resistance	100℃/W (RθJA)
Forward Current	1 A
Max Forward Surge Current (Ifsm)	25 A
Maximum Forward Voltage (Max)	875 mV
Forward Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	150℃ (Max)
	Show
Size-Length	5.2 mm
Size-Width	2.7 mm
Size-Height	2.7 mm
Operating Temperature	150 ℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
