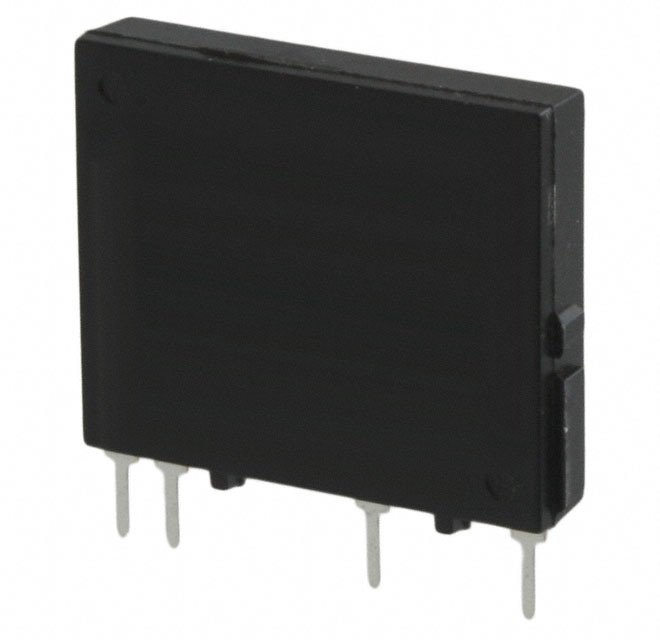

Image is for your reference only,please check specifications for details
Updated at 29/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Solid State SPST-NO (1 Form A) 4-SIP
AQG22205 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | SIP-4 |
| Output Current | 2000 mA |
| Load Current | 2 A |
| Isolation Voltage | 3000 v |
| Input Voltage (Max) | 6 V |
| Input Voltage (Min) | 4 V |
| Output Voltage (Max) | 264 V |
| Output Current (Max) | 2 A |
| Load Current (Min) | 20 mA |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Input Voltage | 4VDC ~ 6VDC |
| Show | |
| Size-Length | 24.5 mm |
| Size-Width | 4.5 mm |
| Size-Height | 20.5 mm |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
