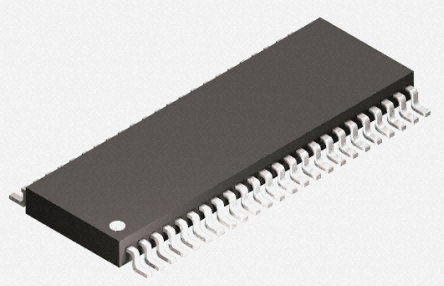

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC74LCX16245DTG is a low-voltage CMOS 16-bit 3-state high performance Non-inverting Transceiver with 5V tolerant inputs/outputs and operating from a 2.3 to 3.6V supply. The device is byte controlled. Each byte has separate Output Enable inputs which can be tied together for full 16-bit operation. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. It is suitable for memory address driving and all TTL level bus oriented transceiver applications. The 4.5ns maximum propagation delays support high performance applications. Current drive capability is 24mA at both A and B ports. The transmit/receive inputs determine the direction of data flow through the bidirectional transceiver. Transmit enables data from A ports to B ports, receive enables data from B to A ports. The output enable inputs, when HIGH, disable both A and B ports by placing them in a HIGH Z condition.
LVTTL Compatible
LVCMOS Compatible
Supports live insertion and withdrawal
Near 0 static supply current in all 3 logic states substantially reduces system power requirements
Latch-up performance exceeds 500mA
4.5ns maximum Propagation delay (tpd)
Designed for 2.3 to 3.6V VCC operation
5V Tolerant - interface capability with 5V TTL logic
IOFF specification guarantees high impedance when VCC = 0V
24mA Balanced output sink and source capability

Show

MC74LCX16245DTG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	TSSOP-48
Supply Voltage (DC)	2.00V (min)
Operating Voltage	1.5V ~ 3.6V
Capacitance	20 pF
Halogen Free Status	Halogen Free
Supply Current	20 μA
Number of Circuits	2 Circuit
Number of Channels	16 Channel
Number of Positions	48 Position
Number of Bits	8 Bit
Power Dissipation	200 mW
Quiescent Current	10 µA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	200 mW
Supply Voltage	2V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2 V
	Show
Size-Length	12.6 mm
Size-Width	6.2 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
