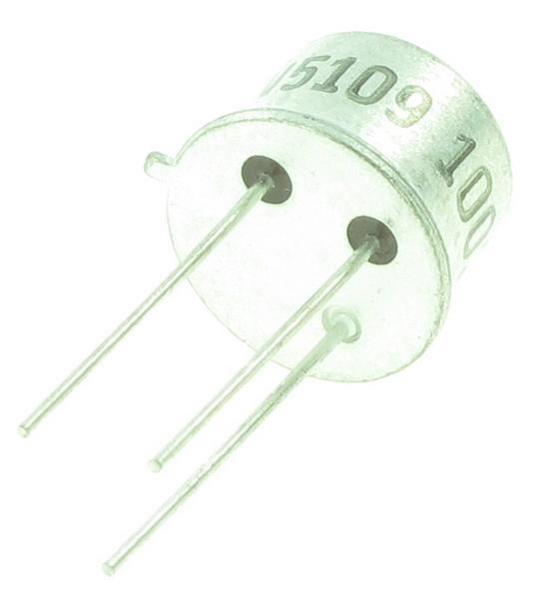

2N5109 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-39-3
Breakdown Voltage (Collector to Emitter)	20 V
hFE Min	40 @50mA, 15V
Input Power (Max)	1 W
	Show
Size-Width	9.4 mm
Operating Temperature	-65℃ ~ 200℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
