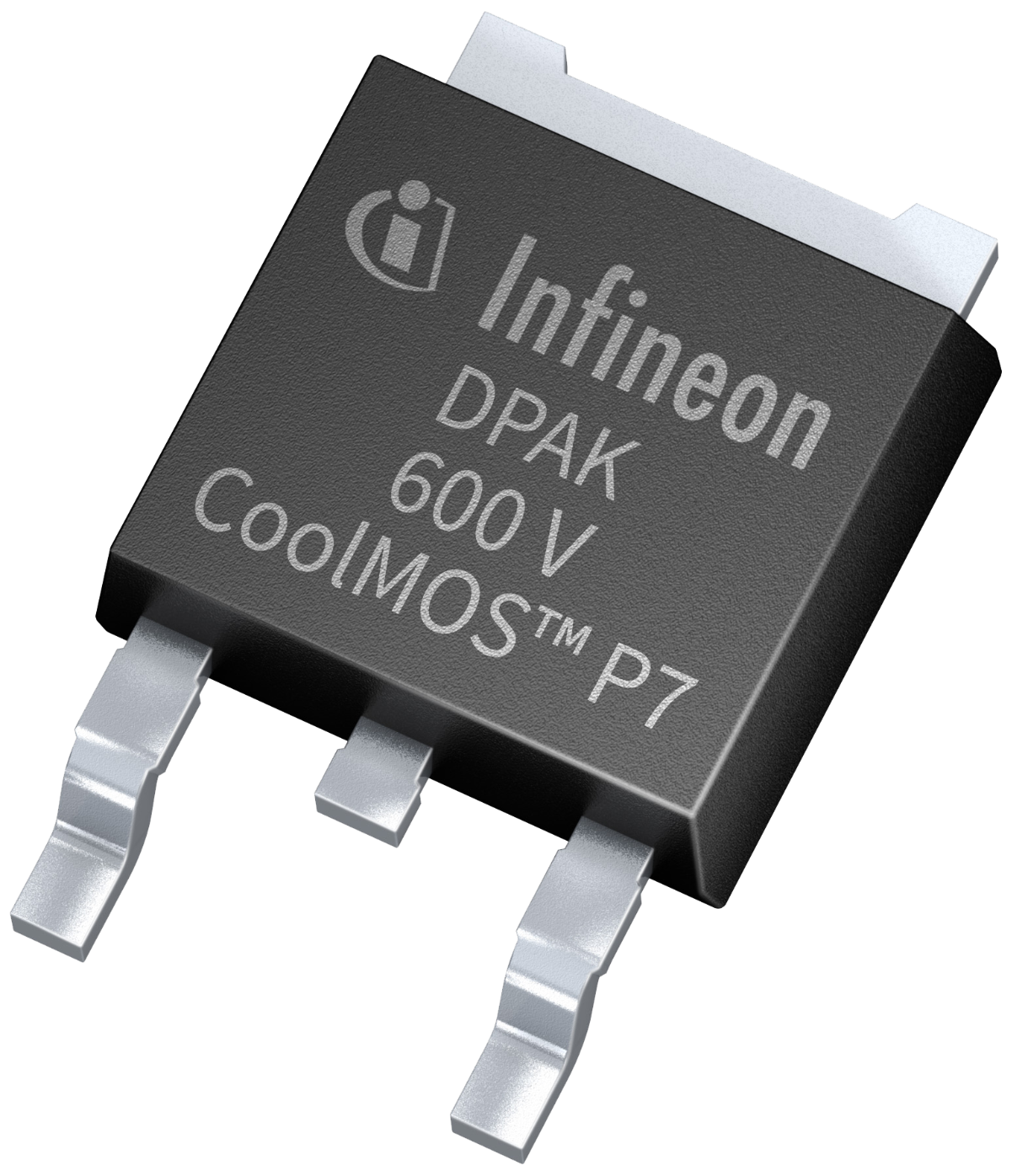

Image is for your reference only,please check specifications for details

IPD60R180P7S - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC22739369
Package:
TO-252
Datasheet:
Datasheet 3D Model
Description:
The 600V CoolMOS™ P7 is the successor to the 600V CoolMOS™ P6 series. It continues to balance the need for high efficiency against the ease-of-use in the design process. The best-in-class R onxA and the inherently low gate charge (Q G) of the CoolMOS™ 7th generation platform ensure its high efficiency.
Stock Locations:
Availability:
1,269 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.8

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description:
The 600V CoolMOS™ P7 is the successor to the 600V CoolMOS™ P6 series. It continues to balance the need for high efficiency against the ease-of-use in the design process. The best-in-class R onxA and the inherently low gate charge (Q G) of the CoolMOS™ 7th generation platform ensure its high efficiency.
Summary of Features:
**Efficiency**
600V P7 enables excellent FOM R DS(on)xE oss andR DS(on)xQ G
**Ease-of-use**
Integrated ESD diode from 180mN and above R DS(on)s
Integrated gate resistor R G
Rugged body diode
Wide portfolio in through hole and surface mount packages
Both standard grade and industrial grade parts are available
Benefits:
**Efficiency**
Excellent FOMs R DS(on)xQ G/R DS(on)xE oss enable higher efficiency
**Ease-of-use**
Ease-of-use in manufacturing environments by stopping ESD failures occurring
Integrated R G reduces MOSFET oscillation sensitivity
MOSFET is suitable for both hard and resonant switching topologies such as PFC and LLC
Excellent ruggedness during hard commutation of the body diode seen in LLC topology
Suitable for a wide variety of end applications and output powers
Parts available suitable for consumer and industrial applications

Show

IPD60R180P7S Specifications
