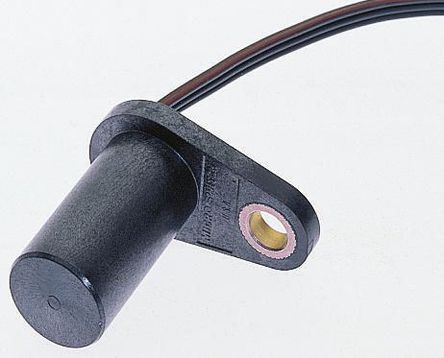

Image is for your reference only,please check specifications for details

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Sealed in probe-style package for physical protection and cost-effective installation. Sensor electronically selfadjusts to slight variations in runout and temperature, often simplifying installation and maintenance. Circuit senses movement of targets in camshaft and crankshaft speed and position, transmission speed, and tachometer applications, as well as anti-skid and traction control applications.
Senses ferrous metal targets
Digital current sinking output (open collector)
Better signal-to-noise ratio than variable reluctance sensors
Excellent low speed performance
Output amplitude not dependant on RPM
Sensor electronically self adjusts to slight variations in runout and variation in temperature
Fast operating speed - over 100 kHz
EMI resistant
Reverse polarity protection and transient protection (integrated into Hall IC)
Wide continuous operating temperature range

Show

1GT101DC Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Chassis
Number of Pins	3 Pin
Case/Package	Barrel, Plastic Housed, Flange Mount
Frequency	100 kHz
Supply Voltage (DC)	12.0 V
Current Rating	10 mA
Output Current	40 mA
Supply Current	20.0 mA
Output Voltage (Min)	400 mV
Output Current (Max)	40 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5VDC ~ 24VDC
	Show
Size-Length	36.4 mm
Size-Width	24 mm
Size-Height	41.6 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
HTS Code	8543704000
ECCN Code	EAR99
