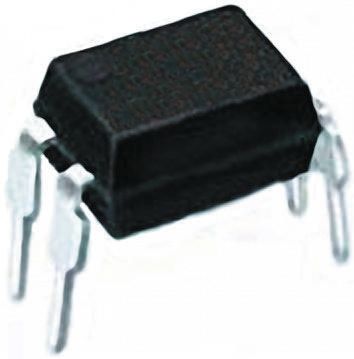

Image is for your reference only,please check specifications for details

FOD817 - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC9927096
Category:
Optocoupler, Optoisolator
Package:
DIP-4
Datasheet:
Datasheet 3D Model
Description:
DIP4 Through Hole Single Channel 70V 5000Vrms Phototransistor Optocoupler
Stock Locations:
Availability:
44 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.16

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FOD814 consists of two gallium arsenide infrared emitting diodes, connected in inverse parallel, driving a silicon phototransistor output in a 4-pin dual in-line package. The FOD817 Series consists of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 4-pin dual in-line package..
Features
---
|
AC Input Response (FOD814)
Current Transfer Ratio in Selected Groups:
FOD814: 20-300%
FOD814A: 50-150%
FOD817: 50-600%
FOD817A: 80-160%
FOD817B: 130-260%
FOD817C: 200-400%
FOD817D: 300-600%
Minimum BVCEO of 70 V Guaranteed
Safety and Regulatory Approvals
UL1577, 5,000 VACRMS for 1 Minute
DIN EN/IEC60747-5-5

Show

FOD817 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	DIP-4
Rise/Fall Time	4µs, 3µs
Number of Channels	1 Channel
Number of Positions	4 Position
Forward Voltage	1.2 V
Power Dissipation	200 mW
Rise Time	4 µs
Isolation Voltage	5000 Vrms
Forward Current	50 mA
Output Voltage (Max)	70 V
Input Current (Min)	50 mA
Maximum Forward Voltage (Max)	1.4 V
Forward Current (Max)	50 mA
Fall Time	3 µs
Fall Time (Max)	18 µs
Fall Time (Max)	18 µs
Operating Temperature (Max)	110 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	200 mW
	Show
Operating Temperature	-55℃ ~ 110℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2017/07/07
ECCN Code	EAR99
