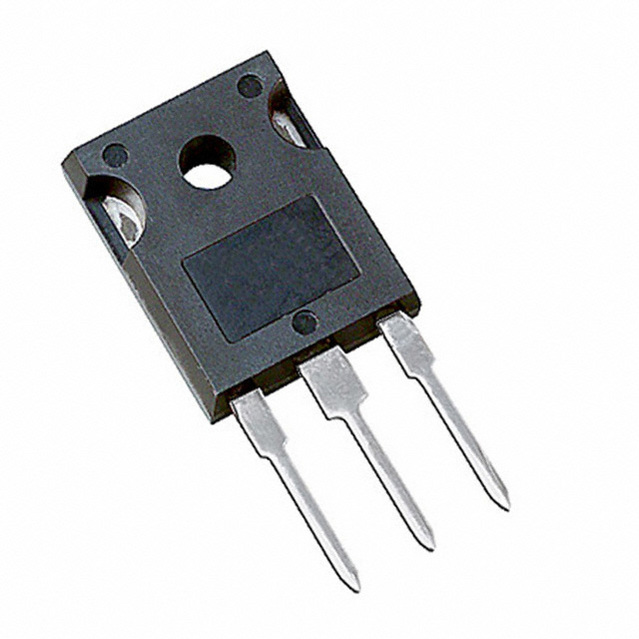

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IRFP064 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247
Voltage Rating (DC)	60.0 V
Current Rating	70.0 A
Polarity	N-Channel
Power Dissipation	300 W
Drain to Source Voltage (Vds)	60.0 V
Breakdown Voltage (Drain to Source)	60.0V (min)
Continuous Drain Current (Ids)	70.0 A
Rise Time	190 ns
Input Capacitance (Ciss)	7400pF @25V(Vds)
Fall Time	190 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	300000 mW
	Show
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
