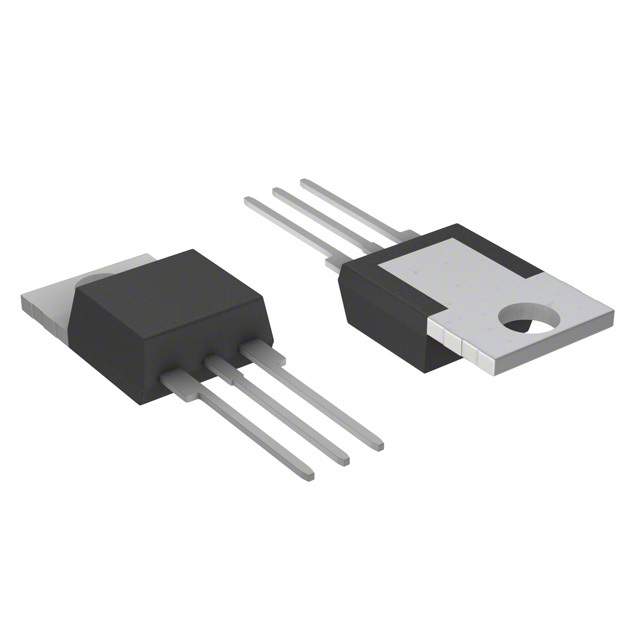

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The S8025L is an excellent unidirectional Switching Thyristor for phase control applications such as heating and motor speed controls. The standard phase control SCRs are triggered with few milliamperes of current at less than 1.5V potential.
100% Matte Tin-plated Terminal Finish
Copper Alloy Lead

Show

S8025L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Contacts	3 Contact
Voltage Rating (DC)	800 V
Current Rating	16.0 A
Load Current	16 A
Number of Positions	3 Position
Holding Current	50.0 mA
Holding Current (Max)	50 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature	-40℃ ~ 125℃
	Show
Size-Height	9.4 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Discontinued at Digi-Key
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
