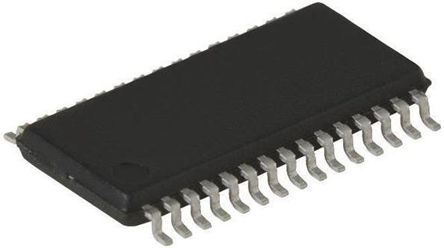

- PCM1860DBT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC40713896
-
Category:Analog to Digital, ADC IC
-
Package:TSSOP-30
-
Datasheet:Datasheet 3D Model
-
Description:103dB 2CH H/W Controlled Audio ADC With Universal Front End 30-TSSOP -40℃ to 125℃
-
Stock Locations:
-
Availability:589 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.62
Updated at 29/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The PCM1860DBT is a 2-channel audio Analog-to-digital Converter (ADC) with universal front end. It is a family of audio front-end devices takes a new approach to audio-function integration to ease compliance with European Ecodesign legislation while enabling high-performance end products. With no need for a 5V supply or an external programmable-gain amplifier, smaller, smarter products are feasible. It is highly flexible audio front end supports input levels from small-mV microphone inputs to 2.1VRMS line Inputs without external resistor dividers. The PCM186x family integrates many system-level functions that assist or replace some DSP functions. All these features are available using a single 3.3V power supply. An integrated band-gap voltage reference provides excellent PSRR, so that a dedicated analog 3.3V rail may not be required.
- Analog pre-mix function before PGA/MUX
- Single-ended, pseudo-differential or differential inputs with mic bias
- Hardware control
- H/W programmable gain amplifier
- S/W programmable gain amplifier
- Integrated high performance audio PLL
- Energy sense audio content detector - For auto system wakeup and sleep
- Master or slave audio interface
- Mixer functionality
- Zero crossing PGA gain changes
- Automatic PGA clipping suppression control
PCM1860DBT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 30 Pin |
| Case/Package | TSSOP-30 |
| Supply Voltage (DC) | 3.00V (min) |
| Supply Current | 16 mA |
| Number of Channels | 2 Channel |
| Number of Positions | 30 Position |
| Number of Bits | 24 Bit |
| Power Dissipation | 85 W |
| Sample Rate | 192 ksps |
| Power Consumption | 85.0 mW |
| Number of ADCs | 2 ADC |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of Input Channels | 8, 4 Channel |
| Supply Voltage | 3V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 7.9 mm |
| Size-Width | 4.5 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
