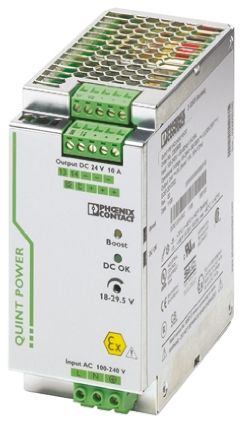

Image is for your reference only,please check specifications for details
- 2320911 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC67071721
-
Category:AC to DC Converter, AC/DC Converter
-
Datasheet:Datasheet 3D Model
-
Description:AC-DC DIN Rail Power Supply, Medical, Adjustable, Fixed, 85V, 264V, 240W, 24V, 10A
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **QUINT POWER Single and Three Phase Power Supplies**
- QUINT POWER generation maximizes the availability of your plant. With some featuring the SFB technology (Selective Fusebreaking Technology), the 6-times nominal current for 12 ms, can be the first time standard circuit breakers reliable and quick trigger. Faulty current paths are selectively shut down, the error is limited and important Plant parts remain in operation.
2320911 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 13 Pin |
| Power Rating | 240 W |
| Number of Outputs | 1 Output |
| Output Voltage | 24 V |
| Output Current | 10 A |
| Output Power | 240 W |
| Isolation Voltage | 3 kV |
| Input Voltage (Max) | 264 VAC |
| Input Voltage (Min) | 85 VAC |
| Input Voltage (DC Max) | 410 V |
| Input Voltage (DC Min) | 90 V |
| Input Voltage (AC Max) | 264 V |
| Input Voltage (AC Min) | 85 V |
| Output Voltage (Max) | 29.5 VDC |
| Output Voltage (Min) | 18 VDC |
| Output Current (Max) | 10 A |
| Input Power (Max) | 240 W |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 85VAC ~ 264VAC, 90VDC ~ 410VDC |
| Show | |
| Size-Length | 4.9 in |
| Size-Width | 2.4 in |
| Size-Height | 130 mm |
| Weight | 1.1 kg |
| Operating Temperature | -40℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8504407012 |
| ECCN Code | EAR99 |
