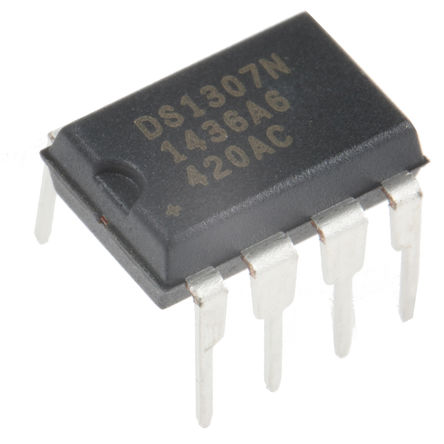

DS1307N+ - Maxim Integrated
Manufacturer:
Maxim Integrated
ManyChip's Part#:
MC6402721
Category:
Real Time Clock IC
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
Real Time Clock (RTC) IC Clock/Calendar 56B I2C, 2-Wire Serial 8-DIP (0.300", 7.62mm)
Stock Locations:
Availability:
4,050 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.35

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DS1307N+ is a 64 x 8, serial, I2C real time clock (RTC) in 8 pin DIP package. It is a low power, full binary coded decimal (BCD) clock/calendar with 56bytes of NV SRAM. It has supply voltage range from 4.5V to 5.5V, active supply current of 1.5mA and standby current of 200µA. Address and data are transferred serially through an I2C bidirectional bus. The clock/calendar provides seconds, minutes, hours, day, date, month and year information. The end of the month date is automatically adjusted for months with fewer than 31 days including leap year compensation valid up to 2100. The clock operates in either 24 hour or 12 hour format with AM/PM indicator. The DS1307 has built-in power sense circuit that detects power failures and automatically switches to backup supply. Timekeeping operation continues while the device operates from the backup supply.
UL recognized
Operating temperature range from -40°C to 85°C
Automatic power fail detect and switch circuitry
Time keeping current of 300nA
Completely manages all timekeeping functions
56byte, battery backed, general purpose RAM with unlimited writes
Programmable square wave output signal
Simple serial port interfaces to most microcontrollers
Low power operation extends battery backup run time
Consumes less than 500nA in battery backup mode with oscillator running
