Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |
Number of Pins | 7 Pin |

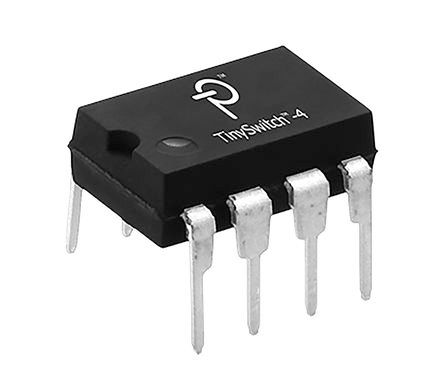

Case/Package | DIP-8 |
Power Rating | 28.5 W |
Breakdown Voltage | 725 V |
Number of Positions | 7 Position |
Output Power | 36.5 W |
Switching Frequency | 124kHz ~ 140kHz |
Duty Cycle | 67 % |
Input Voltage (Max) | 265 VAC |
Input Voltage (Min) | 85 VAC |
Input Voltage (AC Max) | 265 v |
Input Voltage (AC Min) | 85 v |
Output Voltage (Min) | 50 VDC |
Output Current (Max) | 2.55 A |
Maximum Duty Cycle | 67 % |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -40 ℃ |
Input Voltage | 85VAC ~ 265VAC |
Show | |
Size-Length | 9.83 mm |
Size-Width | 6.6 mm |
Size-Height | 3.68 mm |
Operating Temperature | -40℃ ~ 150℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/12/17 |
ECCN Code | EAR99 |
