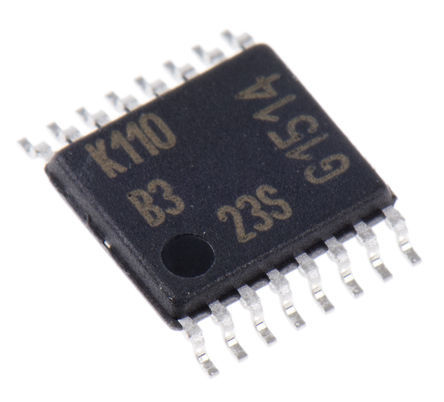

Image is for your reference only,please check specifications for details

TDK5110 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC67470728
Category:
RF Transmitter
Package:
TSSOP-16
Datasheet:
Datasheet 3D Model
Description:
RF Transmitter ASK, FSK 433 ~ 435MHz; 866 ~ 870MHz 11dBm 20kbps PCB, Surface Mount Antenna 16-TSSOP (0.173", 4.4mm Width)
Stock Locations:
Availability:
679 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.26

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

TDK5110 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Supply Voltage (DC)	2.10V (min)
Number of Positions	16 Position
Data Rate	20.0 kbps
Output Power	11 dBm
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.1V ~ 4V
Supply Voltage (Max)	4 V
Supply Voltage (Min)	2.1 V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1 mm
Weight	0.06 g
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
