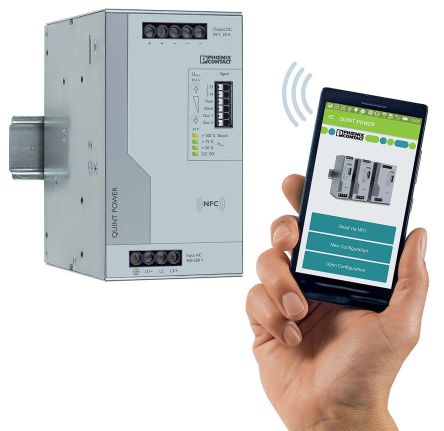

Image is for your reference only,please check specifications for details

2938581 - Phoenix
Manufacturer:
Phoenix
ManyChip's Part#:
MC38335037
Category:
AC to DC Converter, AC/DC Converter
Package:
100
Datasheet:
Datasheet 3D Model
Description:
Power Supply; AC-DC; 24V; 5A; 85-264V In; Enclosed; DIN Rail Mount; 120W; QUINT Series
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**QUINT POWER SUPPLY allows global use due to a wide range input. ** The reliability of a power supply determines the availability of individual components in a system and whether complex systems can function safely. The globalization of markets has increased the demand placed on a power supply. This has resulted in a need for a wide range input and a high level of availability. These requirements are met by the QUINT POWER SUPPLY. Based on the wide range input and an international approval package (including UL 60950 for IT equipment and UL 508 for industrial control equipment) this power supply is the most versatile and qualified for worldwide use. Your entire system can be tested at any production location in the world and delivered to any location in the world without faulty switching of the input voltage. This will help reduce storage costs and logistical efforts. The QUINT POWER product range offers universal DC power supplies from 60-960 W. They are designed as primary switched-mode regulators and operate with a high level of efficiency so the loss is kept to a minimum. High levels of operating safety are required in complex global networks. This power supply contains large capacitors that guarantee a main failure bridging time of more than 20 ms at full load. QUINT POWER also operates in applications where static voltage dips, transient power supply failures, or phase failures are common. The QUINT POWER SUPPLY provides preventive function monitoring diagnoses, an impermissible operating state, and minimizes downtimes in your system. An Active transistor output and an electrically isolated relay contact are provided for monitoring of this state. This signal not only provides information on the device function, but also indicates a system overload at an early stage. QUINT-PS-100-240AC/24DC/5 is a primary switch-mode power supply unit for universal use, 1 phase, Din-rail mountable. (24 V DC / 5 A) **Features **
* Preventative Function Monitoring through professional signaling
* Idle proof and short circuit proof
* High level of operational safety
* Five-Year USA Warranty

Show

2938581 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	DIN Rail
Number of Pins	10 Pin
Case/Package	100
Frequency	45Hz ~ 65Hz
Current Rating	5 A
Power Rating	120 W
Number of Outputs	1 Output
Output Voltage	24 V
Output Current	5 A
Output Power	120 W
Isolation Voltage	4 kV
Input Voltage (Max)	264 VAC
Input Voltage (Min)	85 VAC
Input Voltage (DC Max)	350 V
Input Voltage (DC Min)	90 V
Input Voltage (AC Max)	264 V
Input Voltage (AC Min)	85 V
Output Voltage (Max)	28.5 VDC
Output Voltage (Min)	22.5 VDC
Output Current (Max)	5 A
Input Power (Max)	120 W
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-25 ℃
Input Voltage	100VAC ~ 240VAC
	Show
Size-Length	4.9 in
Size-Width	2.2 in
Size-Height	5.1 in
Weight	830 g
Operating Temperature	-25℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8504407007
ECCN Code	EAR99
