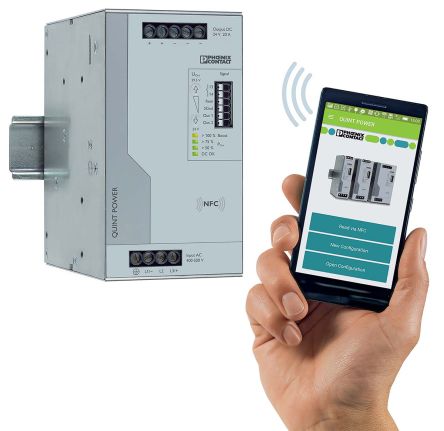

- 2320908 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC24915329
-
Category:AC to DC Converter, AC/DC Converter
-
Package:120
-
Datasheet:Datasheet 3D Model
-
Description:PHOENIX CONTACT 2320908 AC-DC DIN Rail Power Supply, IP20, Adjustable, Fixed, 1 Output, 85VAC, 264VAC, 120W, 24VDC
-
Stock Locations:
-
Availability:14 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 693.44
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- QUINT POWER power supplies with maximum functionality. QUINT POWER circuit breakers magnetically and therefore quickly trip at six times the nominal current, for selective and therefore cost-effective system protection. The high level of system availability is additionally ensured, thanks to preventive function monitoring, as it reports critical operating states before errors occur.
- Reliable starting of heavy loads takes place via the static power reserve POWER BOOST. Thanks to the adjustable voltage, all ranges between 5 VDC ... 56 V DC are covered.
2320908 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 13 Pin |
| Case/Package | 120 |
| Power Rating | 120 W |
| Number of Outputs | 1 Output |
| Output Voltage | 24 V |
| Output Current | 5 A |
| Output Power | 120 W |
| Isolation Voltage | 4 kV |
| Input Voltage (Max) | 264 VAC |
| Input Voltage (Min) | 85 VAC |
| Input Voltage (DC Max) | 410 V |
| Input Voltage (DC Min) | 90 V |
| Input Voltage (AC Max) | 264 v |
| Input Voltage (AC Min) | 85 v |
| Output Voltage (Max) | 29.5 VDC |
| Output Voltage (Min) | 18 VDC |
| Output Current (Max) | 5 A |
| Input Power (Max) | 120 W |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Input Voltage | 85VAC ~ 264VAC |
| Show | |
| Size-Length | 4.9 in |
| Size-Width | 1.6 in |
| Size-Height | 130 mm |
| Weight | 700 g |
| Operating Temperature | -40℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8504407007 |
| ECCN Code | EAR99 |
