Description
- DESCRIPTION/ORDERING INFORMATION
- AUP technology is the industry"s lowest-power logic technology designed for use in battery-operated or battery backed-up equipment. The SN74AUP1T97 is designed for logic-level translation applications with input switching levels that accept 1.8-V LVCMOS signals, while operating from either a single 3.3-V or 2.5-V VCC supply.
- FEATURES
- • Available in the Texas Instruments NanoStar™ Packages
- • Single-Supply Voltage Translator
- • 1.8 V to 3.3 V (at VCC= 3.3 V)
- • 2.5 V to 3.3 V (at VCC= 3.3 V)
- • 1.8 V to 2.5 V (at VCC= 2.5 V)
- • 3.3 V to 2.5 V (at VCC= 2.5 V)
- • Nine Configurable Gate Logic Functions
- • Schmitt-Trigger Inputs Reject Input Noise and Provide Better Output Signal Integrity
- • Ioff Supports Partial-Power-Down Mode With Low Leakage Current (0.5 µA)
- • Very Low Static and Dynamic Power Consumption
- • Pb-Free Packages Available: SON (DRY or DSF), SOT-23 (DBV), SC-70 (DCK), and NanoStar WCSP
- • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- • ESD Performance Tested Per JESD 22
- – 2000-V Human-Body Model(A114-B, Class II)
- – 1000-V Charged-Device Model (C101)
- • Related Devices: SN74AUP1T98, SN74AUP1T57, and SN74AUP1T58

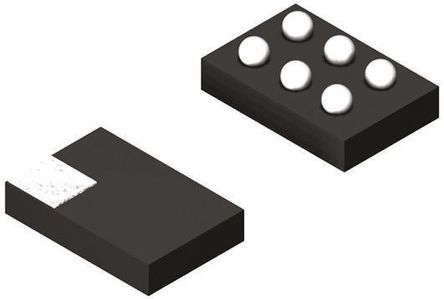

SN74AUP1T97YZPR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | DSBGA-6 |
| Supply Voltage (DC) | 2.30V ~ 3.60V |
| Number of Outputs | 1 Output |
| Output Current | 4.00 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Bits | 3 Bit |
| Propagation Delay Max (tpd) | 3.50 ns |
| Voltage Nodes | 2.50 V, 3.30 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of Output Channels | 1 Channel |
| Supply Voltage | 2.3V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Show | |
| Size-Length | 1.42 mm |
| Size-Width | 0.31 mm |
| Size-Height | 0.918 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
