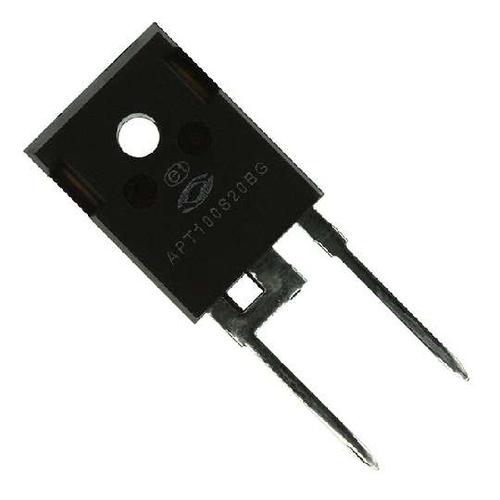

APT100S20BG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-247-2
Voltage Rating (DC)	200 V
Current Rating	120 A
Output Current	≤120 A
Forward Voltage	950mV @100A
Polarity	Standard
Thermal Resistance	18℃/W (RθJC)
Reverse recovery time	110 ns
Forward Current	120 A
Max Forward Surge Current (Ifsm)	1 kA
Forward Current (Max)	120000 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	16.26 mm
Size-Width	5.31 mm
Size-Height	21.46 mm
Operating Temperature	55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
