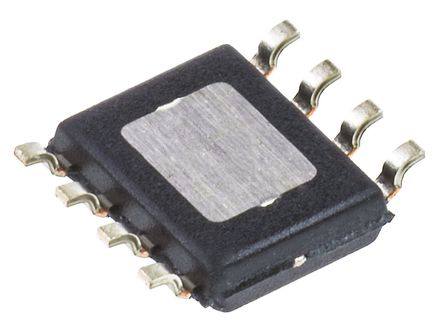

- TPS5430DDA - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC30859
-
Category:DC to DC Converter
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:Step-Down Regulator 5.5V to 36V, 3A, 500kHz Step Down SWIFT Converter Conv DC-DC 5.5V to 36V Step Down Single-Out 1.22V to 31V 3A 8Pin HSOP EP Tube
-
Stock Locations:
-
Availability:805 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.95
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS5430DDA is a 3A 500kHz Step-down Converter with Eco-mode™ that integrates a low-resistance, high-side N-channel MOSFET. Included on the substrate with the listed features are a high-performance voltage error amplifier that provides tight voltage regulation accuracy under transient conditions, an under-voltage-lockout circuit to prevent start-up until the input voltage reaches 5.5V, an internally set slow-start circuit to limit inrush currents and a voltage feed-forward circuit to improve the transient response. Using the ENA pin, shutdown supply current is reduced to 18µA typically. Other features include an active-high enable, over-current limiting, over-voltage protection and thermal shutdown. To reduce design complexity and external component count, the TPS5430 feedback loop is internally compensated. The TPS5430 regulates a wide variety of power sources including 24V bus.
- Up to 3A continuous (4A peak) output current
- High efficiency up to 95% enabled by 110mR integrated MOSFET switch
- Wide output voltage range (adjustable down to 1.22V with 1.5% initial accuracy)
- Internal compensation minimizes external parts count
- Improved line regulation and transient response by input voltage feed-forward
- System protected by over-current limiting, overvoltage protection and thermal shutdown
- Green product and no Sb/Br
- This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
TPS5430DDA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Frequency | 500 kHz |
| Supply Voltage (DC) | 36.0V (max) |
| Number of Outputs | 1 Output |
| Output Voltage | 31 V |
| Output Current | 3 A |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Quiescent Current | 3 mA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 500 kHz |
| Thermal Shutdown | Yes |
| Topology | Buck |
| Input Voltage (Max) | 36 V |
| Input Voltage (Min) | 5.5 V |
| Output Voltage (Max) | 31 V |
| Output Voltage (Min) | 1.22 V |
| Output Current (Max) | 3 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 5.5 V |
| Supply Voltage (Min) | 5.5 V |
| Input Voltage | 5.5V ~ 36V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4 mm |
| Size-Height | 1.55 mm |
| Weight | 0.001129445076 kg |
| Operating Temperature | -40℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2014/12/17 |
| HK STC License | NLR |
