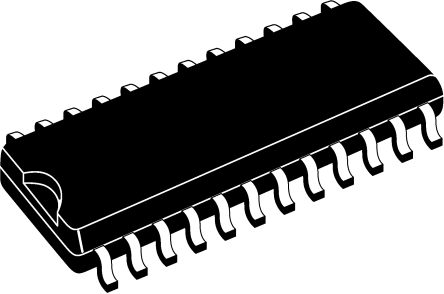

ACF2101BU - TI
Manufacturer:
TI
ManyChip's Part#:
MC12377336
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-24
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS ACF2101BU. Operational Amplifier, Dual, 2 Amplifier, 2MHz, 3V/µs, 4.5V to 18V, -10V to -18V, SOIC, 24Pins
Stock Locations:
Availability:
297 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 31.19

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ACF2101BU is a low noise dual Switched Integrator for precision applications. Each channel can convert an input current to an output voltage by integration, using either an internal or external capacitor. Included on the chip are precision 100pF integration capacitors, hold and reset switches and output multiplexers. As a complete circuit on a single chip, the ACF2101 eliminates many of the problems commonly encountered in discrete designs, such as leakage current errors and noise pickup. The integrating approach can provide lower noise than conventional transimpedance amplifier designs and also eliminates the need for high performance, high value feedback resistors. The extremely low bias current and low noise of the ACF2101"s Difet® amplifier, along with active laser trimming of both offset and drift, assure precision current to voltage conversion.
Includes integration capacitor, output multiplexer, reset and hold switches
10µVRMS Low noise
0.1pC Low charge transfer
120dB Wide dynamic range
100fA Low bias current
5µV/°C Typical offset drift
Green product and no Sb/Br

Show

ACF2101BU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	SOIC-24
Supply Voltage (DC)	-15.0 V
Output Current	5 mA
Supply Current	12 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	24 Position
Power Dissipation	500 mW
Input Offset Drift	5.00 µV/K
Bandwidth	2 MHz
Slew Rate	3.00 V/μs
Gain Bandwidth Product	2 MHz
Input Offset Voltage	500 µV
Input Bias Current	0.1 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	2 MHz
Power Dissipation (Max)	500 mW
Supply Voltage (Max)	36 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	15.4 mm
Size-Width	7.52 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
