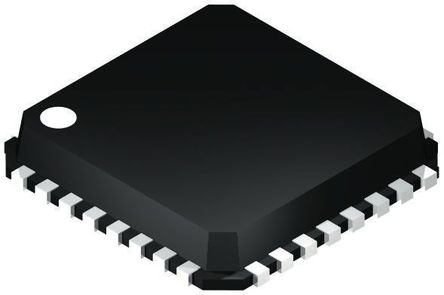

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- GENERAL DESCRIPTION
- The ADV7180 automatically detects and converts standard analog baseband television signals compatible with worldwide NTSC, PAL, and SECAM standards into 4:2:2 component video data compatible with the 8-bit ITU-R BT.656 interface standard.
ADV7180KCP32Z Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 32 Pin |
| Case/Package | LFCSP-32 |
| Supply Voltage (DC) | 1.71V (min) |
| Supply Current | 77 mA |
| Number of Positions | 32 Position |
| Number of Bits | 10 Bit |
| Resolution (Bits) | 10.0 Bit |
| Number of ADCs | 1 ADC |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -10 ℃ |
| Number of Input Channels | 3 Channel |
| Supply Voltage (Max) | 1.89 V |
| Supply Voltage (Min) | 1.71 V |
| Show | |
| Size-Length | 6 mm |
| Size-Width | 6 mm |
| Size-Height | 0.95 mm |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
