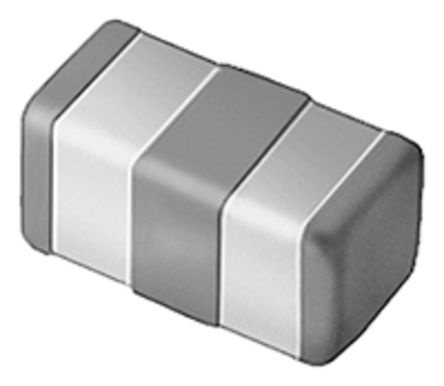

Image is for your reference only,please check specifications for details
- NFL18ST207X1C3D - muRata
-
Manufacturer:muRata
-
ManyChip's Part#:MC7113411
-
Category:RFI Shielding
-
Package:0603
-
Datasheet:Datasheet 3D Model
-
Description:LC-фильтр электромагнитных помех (T-типа), фильтр нижних частот 3-го порядка, 1 канал, L = 110 нГн, C = 25 пФ, 150 мА, типоразмер 0603 (1608 метрический), 3 контактные площадки
-
Stock Locations:
-
Availability:9,900 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.24
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- LC-фильтр (T-тип) ЭМП, фильтр нижних частот 3-го порядка, 1 канал, L = 110 нГн, C = 25 пФ, 150 мА, корпус 0603 (1608 метрический), 3 контактные площадки
NFL18ST207X1C3D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 1608 |
| Case/Package | 0603 |
| Capacitance | 25 pF |
| Capacitance Tolerance | ±20 % |
| Number of Channels | 1 Channel |
| Shielding | No |
| Current Rating (Max) | 0.15 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Voltage Rating (Max) | 16 VDC |
| Voltage Rating | 16 V |
| Show | |
| Size-Length | 1.6 mm |
| Size-Width | 0.8 mm |
| Size-Height | 0.8 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
