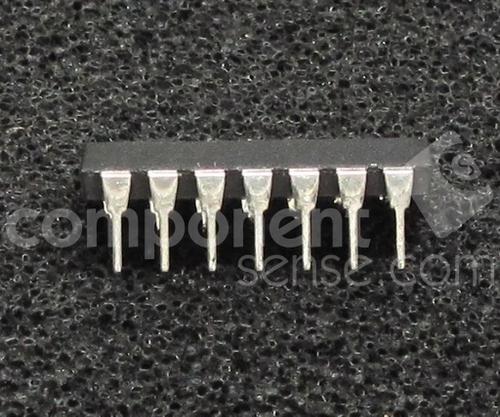

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The HEF4013BP is a dual D type flip flop in 14 pin DIP package. It features independent set direct input (SD), clear direct input (CD), clock input (CP) and outputs. Data is accepted when CP is low and is transferred to output on positive going edge of clock. The active high asynchronous CD and SD inputs are independent and override D or CP inputs. The outputs are buffered for best system performance. The clock input"s schmitt trigger action makes circuit highly tolerant of slower clock rise and fall times. It operates over a recommended VDD power supply range of 3V to 15V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS or another input. Typical applications include counters, dividers, registers and toggle flip flops.
Tolerant of slow clock rise and fall times
Fully static operation
5V, 10V and 15V parametric ratings
Standardized symmetrical output characteristics
Complies with JEDEC standard JESD 13-B
Ambient temperature range from -40°C to 125°C

Show

HEF4013BP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	DIP
Frequency	40 MHz
Supply Voltage (DC)	15.0V (max)
Output Current	2.4 mA
Number of Positions	14 Position
Number of Gates	2 Gate
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	15 V
Supply Voltage (Min)	3 V
	Show
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
