EV2300 - TI
Manufacturer:
TI
ManyChip's Part#:
MC7699300
Category:
Microprocessor Development Kit
Datasheet:
Datasheet 3D Model
Description:
USB-Based PC Interface Board for Battery Fuel (Gas) Gauge Evaluation
Stock Locations:
Availability:
10,358 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 224.6

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

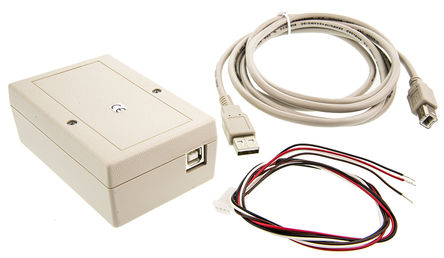

The EV2300 is a USB based interface board for a PC that can be used to evaluate battery fuel gauge circuits designed with Texas Instruments ICs. The EV2300 has connections on it for a USB cable and also accepts inputs from a battery fuel gauge circuit"s communication port (SMBus or HDQ). By running the appropriate PC software for the corresponding fuel gauge IC, the EV2300 interface board allows the user to evaluate the battery fuel gauge circuit. The EV2300 controller is a bq8012 running at 4MHz. The controller firmware is stored in flash memory and is executed by the core at power up after the boot ROM code verifies the integrity words. The controller communicates with target devices through either: a 2-wire SMBus communication port, a 1-wire HDQ port, or a 2-wire E2PROM I2C port. The 2-wire SMBus communication port supports both SMBus and I2C protocols.
USB based interface board for eval of battery fuel gauge circuits developed with fuel gauge Ics
Provides interface between intelligent battery circuit and a Windows based PC
Connects to the USB port of a PC
Allows for on screen display and programming
Fully powered from the USB port
Capable of providing a 25mA 3.3V source
Complete interface between USB and SMBus, I2C, and HDQ (8/16) interfaces using a simple API
Complete interface between USB and SMBus, I2C and HDQ (8/16) interfaces using a simple API
