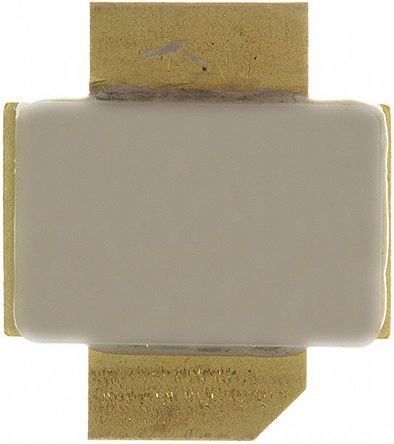

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

If you"re looking for a MOSFET that is compatible with radio frequency environments, this LET9045F RF amplifier from STMicroelectronics is for you! Its maximum power dissipation is 108000 mW. This RF power MOSFET has a minimum operating temperature of -65 °C and a maximum of 200 °C. Its maximum frequency is 1000 MHz. This N channel RF power MOSFET operates in enhancement mode.

Show

LET9045F Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	M-250
Frequency	960 MHz
Current Rating	9 A
Number of Positions	3 Position
Power Dissipation	108 W
Drain to Source Voltage (Vds)	80 V
Output Power	59 W
Gain	17.7 dB
Test Current	300 mA
Input Capacitance (Ciss)	58pF @28V(Vds)
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	108000 mW
Voltage Rating	80 V
	Show
Size-Length	9.91 mm
Size-Width	6.09 mm
Size-Height	3.94 mm
Operating Temperature	-65℃ ~ 200℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
