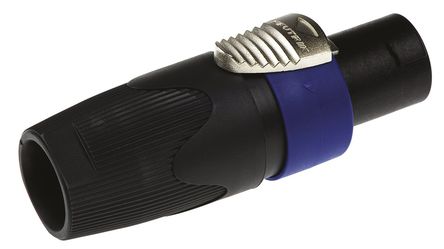

Image is for your reference only,please check specifications for details

NL4FX - Neutrik
Manufacturer:
Neutrik
ManyChip's Part#:
MC1891881
Category:
Speaker Connector
Package:
Metal
Datasheet:
Datasheet 3D Model
Description:
Connector; 0.24in. to 0.55in. (O.D); 4; 40A (RMS) (Continuous); 250VAC; gt 1
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NL4FX from Neutrik is a 4 pole, chuck type strain relief speakON female cable connector in dark grey bushing. This is a 1 piece strain relief chuck for 7mm to 14.5mm cable outer diameter, easy and extremely precise locking system with "Quick Lock" and improved grip on latch. Colour coding possible and improved screw type termination for highest pull-out force.
Current rating 40Arms continuous
Up to 50A audio signal and duty cycle of 50%
High impact materials, long lasting and reliable
Only 3 parts, easy to assemble
Wire size of 12AWG / 10AWG
Brass (CuZn39Pb3) contacts with 4µm Ag plating
PBTP 20 % GR shell and polyacetal (POM) strain relief
PBTP 20% GR insert
UL94 HB flammability and complies with IEC 68-2-20 solderability
Temperature range from -30°C to 80°C

Show

NL4FX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	4 Pin
Case/Package	Metal
Number of Contacts	4 Contact
Gender	Male
Contact Plating	Silver
Current Rating	40 A
Insulation Resistance	1000 MΩ
Flammability Rating	UL 94 V-0
Number of Positions	4 Position
Contact Resistance	2.00 mΩ
Number of Mating Cycles	5000 Cycle
Current Rating (Max)	40A/触头
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating (Max)	250 V
Voltage Rating	250 V
Maximum Contact Resistance (Max)	2 mΩ
	Show
Color	Gray
Contact Material	Brass
Operating Temperature	-30℃ ~ 80℃
Housing Material	Nylon
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
HTS Code	8536694020
ECCN Code	EAR99
