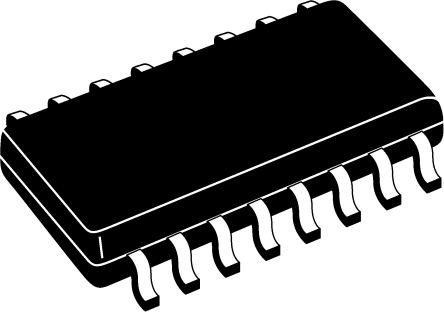

74HC4094D - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC61048161
Category:
Logic Control, Logic Gate IC
Package:
SOIC
Datasheet:
Datasheet 3D Model
Description:
IC HC/UH SERIES, 8Bit RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, 3.9MM, PLASTIC, MS-012, SOT109-1 SOP-16, Shift Register
Stock Locations:
Availability:
262 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.26

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 74HC4094D is an 8 stage shift and store bus register in 16 pin SOIC package. It is a 8bit serial in/serial or parallel out shift register with a storage register and 3 state outputs. Both shift and storage register have separate clocks. The device features a serial input (D) and two serial outputs (QS1 and QS2) to enable cascading. Data is shifted on low to high transitions of CP input. Data is available at QS1 on LOW to HIGH transitions of CP input to allow cascading when clock edges are fast. The same data is available at QS2 on next HIGH to LOW transition of CP input to allow cascading when clock edges are slow. The data in the shift register is transferred to storage register when STR input is high. Data in storage register appears at outputs whenever the output enable input (OE) is high. A low on OE causes the outputs to assume high impedance OFF state. Typical application includes serial to parallel data conversion and remote control holding register.
Supply voltage range from 2V to 6V
Complies with JEDEC standard JESD 7A
CMOS level input
Features ESD protection
Ambient temperature range from -40°C to 125°C

Show

74HC4094D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC
Frequency	95.0 MHz
Supply Voltage (DC)	5.00 V, 6.00 V (max)
Number of Circuits	8 Circuit
Number of Positions	16 Position
Number of Gates	1 Gate
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2 V
	Show
Size-Length	10 mm
Size-Width	4 mm
Size-Height	1.45 mm
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
