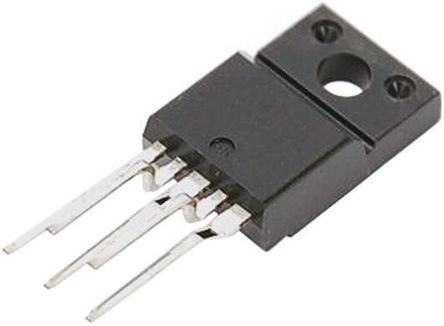

Image is for your reference only,please check specifications for details

FSCQ0765RTYDTU - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC72158296
Category:
AC to DC Converter, AC/DC Power Module
Package:
TO-220-5
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FSCQ0765RTYDTU AC-DC Off-Line Switcher IC, Flyback, 85VAC - 265VAC, 20kHz, 7A output, 100W, TO-220F-5
Stock Locations:
Availability:
10,804 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.64

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FSCQ0765RTYDTU is a 650V Integrated Power Switch for 85W offline flyback converters. A Quasi-Resonant Converter (QRC) typically shows lower EMI and higher power conversion efficiency compared to a conventional hard-switched converter with a fixed switching frequency. Therefore, a QRC is well suited for noise-sensitive applications, such as colour TV and audio. Each product in the FSCQ series contains an integrated Pulse Width Modulation (PWM) controller and a SenseFET. This series is specifically designed for quasi-resonant off-line Switch Mode Power Supplies (SMPS) with minimal external components. The PWM controller includes an integrated fixed frequency oscillator, under-voltage lockout, leading-edge blanking (LEB), optimized gate driver, internal soft-start, temperature-compensated precise current sources for loop compensation and self-protection circuitry.
Optimized for Quasi-Resonant Converter (QRC)
Advanced burst-mode operation for under 1W standby power consumption
Pulse-by-pulse current limit
Overload protection (OLP) - Auto restart
Overvoltage protection (OVP) - Auto restart
Abnormal Over-current Protection (AOCP) - Latch
Internal thermal shutdown (TSD) - Latch
Under-voltage lockout (UVLO) with hysteresis
Low start-up current of 25µA (typical)
Internal high voltage SenseFET
Built-in soft-start (20ms)
Extended quasi-resonant switching
ESD sensitive device, take proper precaution while handling the device.

Show

FSCQ0765RTYDTU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	TO-220-5
Frequency	20 kHz
Supply Voltage (DC)	20.0 V
Current Rating	5.00 A
Power Rating	100 W
Number of Outputs	1 Output
Input Voltage (DC)	20.0 V
Output Voltage	125 V
Output Current	7 A
Breakdown Voltage	650 V
Supply Current	4 mA
Number of Positions	5 Position
Drain to Source Resistance (on) (Rds)	1.6 Ω
Power Dissipation	45 W
Quiescent Current	4.00 mA
Switching Frequency	20 kHz
Duty Cycle	95 %
Input Voltage (Max)	20 V
Input Voltage (AC Max)	265 v
Input Voltage (AC Min)	85 v
Output Voltage (Max)	650 V
Output Current (Max)	0.5 A
Output Current (Min)	4.4 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	45000 mW
Supply Voltage (Max)	20 V
Input Voltage	9V ~ 20V
	Show
Size-Length	10.16 mm
Size-Width	4.7 mm
Size-Height	9.19 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
