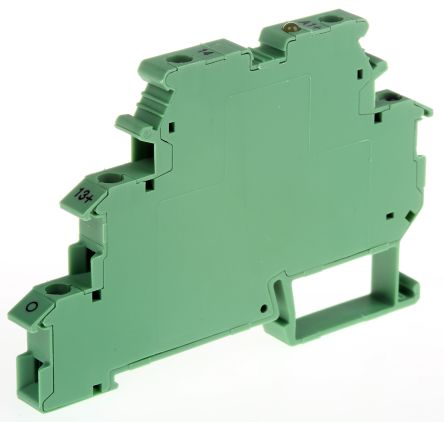

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **dc/dc, dc/ac & ac/dc Opto-Couplers**
- These DIN rail mount opto-couplers provide an ideal means of interfacing on/off signals to, or from, equipment, whilst providing electrical isolation between their own inputs and outputs. In other words, these may be used to protect equipment by electrically isolating its inputs, outputs, or both. The dc/ac and ac/dc versions also provide a means of interfacing (whilst isolating) ac and dc control voltages.
2964296 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw |
| Case/Package | Module |
| Number of Contacts | 5 Contact |
| Gender | Female |
| Number of Rows | 5 Row |
| Number of Circuits | 1 Circuit |
| Load Current | 3 A |
| Input Current | 7 mA |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Voltage Rating (Max) | 24 VDC |
| Voltage Rating | 24 VDC |
| Input Voltage | 24 VDC |
| Show | |
| Size-Length | 80 mm |
| Size-Width | 6.2 mm |
| Size-Height | 56 mm |
| Operating Temperature | -20℃ ~ 60℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536410060 |
| ECCN Code | EAR99 |
