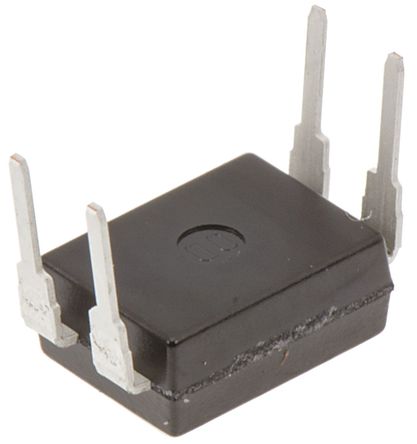

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The AQY210EH is a Solid State Relay with SPST-NO contact and through hole terminals. This AQY-series PhotoMOS® GU-E 1-form-A relay feature extremely low closed-circuit offset voltage to enable control of low-level analogue signals without distortion.
- Controls low-level analogue signals
- High sensitivity and low on-resistance
- Low-level off state leakage current
- 550mW Power dissipation
- 2ms Turn-on and 1ms turn-off maximum time
- -40 to 85°C Operating temperature range
AQY210EH Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | DIP-4 |
| Supply Voltage (DC) | 3.00 V |
| Current Rating | 130 A |
| Capacitance | 1.5 pF |
| Output Voltage | 0V ~ 350V |
| Output Current | 130 mA |
| Contacts Type | SPST-NO |
| Load Current | 130 mA |
| Number of Positions | 4 Position |
| Input Current | 50 mA |
| Power Dissipation | 550 mW |
| Rise Time | 500 µs |
| Isolation Voltage | 5 kV |
| Forward Current | 1.2 mA |
| Input Voltage (Max) | 1.5 V |
| Output Voltage (Max) | 350 V |
| Output Current (Max) | 0.13 A |
| Input Current (Min) | 50 mA |
| Maximum Forward Voltage (Max) | 1.5 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 550 mW |
| Voltage Rating | 350 V |
| Input Voltage | 1.14 VDC |
| Show | |
| Size-Length | 6.40 mm |
| Size-Width | 4.78 mm |
| Size-Height | 3.2 mm |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
