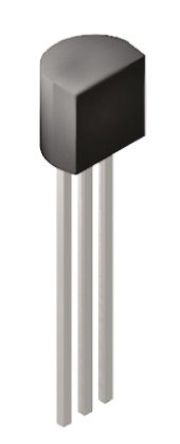

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TL431 series Programmable Precision Reference feature low output noise voltage. The TL431A, B integrated circuit is programmable shunt regulator diode. This monolithic IC voltage reference operates as a low temperature coefficient zener which is programmable from Vref to 36V with two external resistors. This device exhibits a wide operating current range of 1 to 100mA with a typical dynamic impedance of 0.22R. The characteristics of this reference make them excellent replacements for zener diodes in many applications such as digital voltmeters, power supplies and op amp circuitry. The 2.5V reference makes it convenient to obtain a stable reference from 5V logic supplies and since the TL431A, B operates as a shunt regulator, it can be used as either a positive or negative voltage reference.
Temperature compensated for operation over the full temperature range
Low output noise voltage

Show

TL431CLPG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92-3
Supply Voltage (DC)	36.0V (max)
Current Rating	100 mA
Capacitance Tolerance	±2.2 %
Halogen Free Status	Halogen Free
Output Voltage	2.495V ~ 36V
Output Current	100 mA
Number of Channels	1 Channel
Number of Positions	3 Position
Power Dissipation	0.7 W
Thermal Resistance	83℃/W (RθJC)
Input Voltage (Max)	37 V
Input Voltage (Min)	2.495 V
Output Voltage (Max)	36 V
Output Voltage (Min)	2.5 V
Output Current (Max)	100 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Accuracy	±2.2 %
Supply Voltage	36 V
Input Voltage	2.495 V
	Show
Size-Length	5.2 mm
Size-Width	4.19 mm
Size-Height	5.33 mm
Operating Temperature	0℃ ~ 70℃
Temperature Coefficient	±50 ppm/℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
