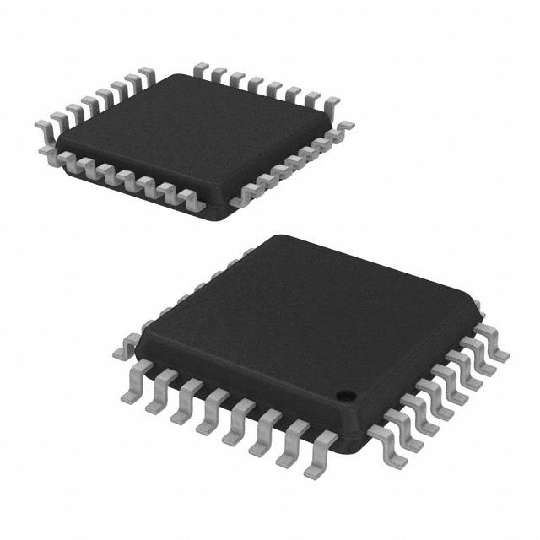

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- System Overview
- C8051F320/1 devices are fully integrated mixed-signal System-on-a-Chip MCUs. Highlighted features are listed below. Refer to Table 1.1 for specific product feature selection.
- • High-speed pipelined 8051-compatible microcontroller core (up to 25 MIPS)
- • In-system, full-speed, non-intrusive debug interface (on-chip)
- • Universal Serial Bus (USB) Function Controller with eight flexible endpoint pipes, integrated trans ceiver, and 1k FIFO RAM
- • Supply Voltage Regulator (5-to-3 V)
- • True 10-bit 200 ksps 17-channel single-ended/differential ADC with analog multiplexer
- • On-chip Voltage Reference and Temperature Sensor
- • On-chip Voltage Comparators (2)
- • Precision programmable 12 MHz internal oscillator and 4x clock multiplier
- • 16 kB of on-chip Flash memory
- • 2304 total bytes of on-chip RAM (256 + 1k + 1k USB FIFO)
- • SMBus/I2C, Enhanced UART, and Enhanced SPI serial interfaces implemented in hardware
- • Four general-purpose 16-bit timers
- • Programmable Counter/Timer Array (PCA) with five capture/compare modules and Watchdog Timer function
- • On-chip Power-On Reset, VDD Monitor, and Missing Clock Detector
- • 25/21 Port I/O (5 V tolerant)
C8051F320 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 32 Pin |
| Case/Package | LQFP-32 |
| Supply Voltage (DC) | 5.00 V, 5.25 V (max) |
| Number of Channels | 5 Channel |
| Clock Speed | 25.0MHz (max) |
| RAM Memory Size | 2.25K x 8 |
| FLASH Memory Size | 16000 B |
| Number of I/O Pins | 25 IO |
| Access Time | 25.0 µs |
| Core Architecture | 8051 |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 7 mm |
| Size-Width | 7 mm |
| Size-Height | 1.4 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Not Recommended |
| Packaging | Tape & Reel (TR) |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| HK STC License | NLR |
