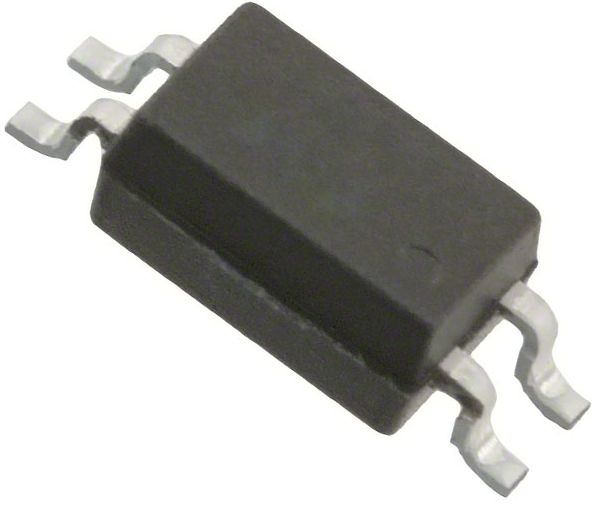

- The TOSHIBA mini flat coupler TLP185 is a small outline coupler, suitable for surface mount assembly. TLP185 consist of a photo transistor optically coupled to a gallium arsenide infrared emitting diode. Since TLP185 is smaller than DIP package, it’s suitable for high-density surface mounting applications such as programmable controllers
- •Collector−emitter voltage: 80V (min)
- • Current transfer ratio: 50% (min) Rank GB: 100% (min)
- • Isolation voltage: 3750Vrms (min)
- • Operation Temperature:-55 to 110 ˚C
- •Safety Standards
TLP185 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SO-6 |
| Number of Channels | 1 Channel |
| Number of Positions | 4 Position |
| Forward Voltage | 1.25 V |
| Rise Time | 5 µs |
| Isolation Voltage | 3750 Vrms |
| Output Voltage (Max) | 80 V |
| Input Current (Min) | 10 mA |
| Maximum Forward Voltage (Max) | 1.4 V |
| Forward Current (Max) | 50 mA |
| Fall Time | 9 µs |
| Operating Temperature (Max) | 110 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 200 mW |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | PB free |
