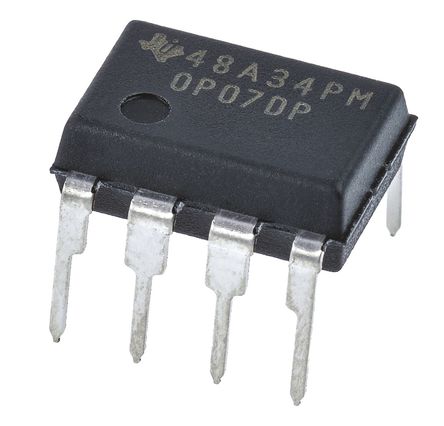

Image is for your reference only,please check specifications for details

OP07DP - TI
Manufacturer:
TI
ManyChip's Part#:
MC1117640
Category:
Operational Amplifier, OP Amp IC
Package:
PDIP-8
Datasheet:
Datasheet 3D Model
Description:
Operational Amplifier, Single, 1 Amplifier, 600kHz, 0.3V/µs, 6V to 36V, DIP, 8Pins
Stock Locations:
Availability:
10,137 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.75

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OP07DP is a general purpose low offset voltage Operational Amplifier offers long-term stability by means of a low-noise, chopperless, bipolar-input-transistor amplifier circuit. For most applications, external components are not required for offset nulling and frequency compensation. The true differential input, with a wide input-voltage range and outstanding common-mode rejection, provides maximum flexibility and performance in high-noise environments and in non-inverting applications. Low bias currents and extremely high input impedances are maintained over the entire temperature range.
Low noise
No external components required
Replace chopper amplifiers at a lower cost
Wide input voltage range
Wide supply voltage range
Green product
This IC can be damaged by ESD. We recommend that all ICs be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.

Show

OP07DP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Supply Current	2.00 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	0.15 W
Common Mode Rejection Ratio	94 dB
Input Offset Drift	700 nV/K
Bandwidth	600 kHz
Slew Rate	300 mV/μs
Gain Bandwidth Product	600 kHz
Input Offset Voltage	60 µV
Input Bias Current	2 nA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	0.6 MHz
Minimum CMRR Range	94 dB
Supply Voltage	6V ~ 36V
	Show
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
