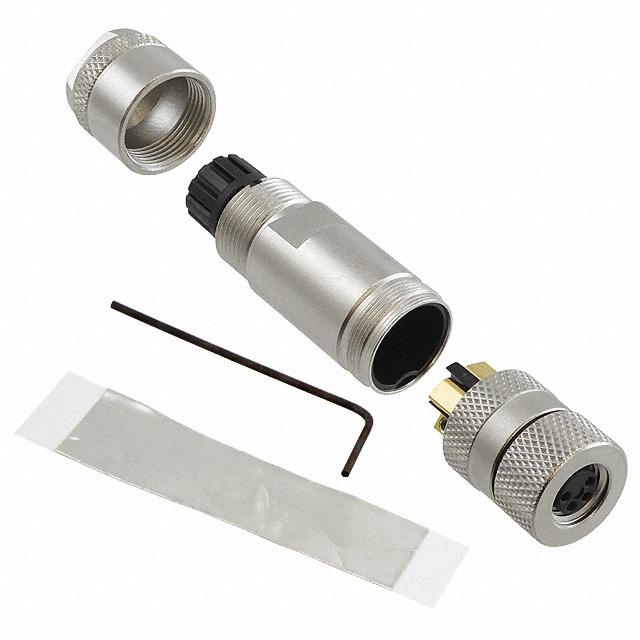

Image is for your reference only,please check specifications for details

1542910 - Phoenix
Manufacturer:
Phoenix
ManyChip's Part#:
MC74301503
Category:
Circular Connector, Connector Circular
Datasheet:
Datasheet 3D Model
Description:
Sensor/actuator conn; female; straight; 4POS; M8; shield; screw conn; max. 5.2mm
Stock Locations:
Availability:
2 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 29.81

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

1542910 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Contacts	4 Contact
Gender	Male
Contact Plating	Gold
Voltage Rating (DC)	30.0 V
Current Rating	4 A
Insulation Resistance	100 MΩ
Number of Positions	4 Position
Current Rating (Max)	4 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	30 V
Voltage Rating	30 V
Maximum Contact Resistance (Max)	3 mΩ
	Show
Size-Length	49 mm
Contact Material	Brass
Operating Temperature	-40℃ ~ 85℃
Housing Material	Metal
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536694020
ECCN Code	EAR99
