- 74279221100 - Wurth Electronics
-
Manufacturer:Wurth Electronics
-
ManyChip's Part#:MC18069692
-
Category:Ferrite
-
Package:1206
-
Datasheet:Datasheet 3D Model
-

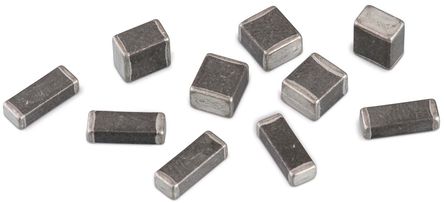

Description:Ferrite Bead, 10Ω, 1206 [3216 Metric], WE-MPSB Series, 10.5A, 3000 µohm, ± 25%
-
Stock Locations:
-
Availability:2,961 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.44
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- WE-MPSB is a high performance SMD Ferrite with an up to 40% higher rated current load and a drastically reduced RDC. As the only worldwide manufacturer, we guarantee the specified high current capability.
- Available Sizes: 0603, 0805, 1206, 1612, 1812, 2220, 3323
- Peak current is up to 20 times higher than rated current
- Up to 40 % higher rated current compared with similar products, up to 10.5A
- Optimized layer design to achieve ultra-low RDC and huge rated current
- High impedance over a wide frequency range at rated current - low DC bias effect
- Operating temperature: -55°C to +125°C
- Input filter for applications with inrush current peaks
- Filtering of power supply lines
- Suppression of differential mode interferences
- Interference suppression of motors
- Input and output filter for DC/DC converter and Hot Swap Controllers
74279221100 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 3216 |
| Case/Package | 1206 |
| Current Rating | 10.5 A |
| Capacitance Tolerance | 25 % |
| Test Frequency | 100 MHz |
| Current Rating (Max) | 10.5 A |
| Current Rating (DC) | 10.5 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Resistance (DC Max) | 3 mΩ |
| Show | |
| Size-Length | 3.2 mm |
| Size-Width | 1.6 mm |
| Size-Height | 1.6 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
