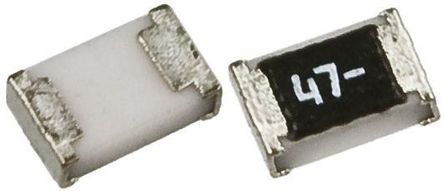

Image is for your reference only,please check specifications for details

Updated at 18/07/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Panasonic ERJ 8BW series resistors are automotive grade, high power thick film and current sensing chip resistors with low resistance values. The resistance range includes E24 decade values from 5mohm to 9.1ohm. ERJ series resistors have metal glaze thick film resistive element and three layers of electrodes that make them highly reliable.
EIA 0402, 0603, 0805, 1206, 1210, 1812, 2010, 2512 case sizes available
Improved high power/resistance to pulse characteristics by double sided resistive element structure
Small size, low weight resistors
Automotive grade AEC-Q200 compliant
Maximum power rating of 1W
Available in ±1%, ±2% and ±5% tolerance
0 to 300, 0 to 500, 0 to 700, ±75, ±100, ±150, ±200, ±250, ±300ppm/°C TCR values available
Operating temperature range -55°C to 155°C
Meets IEC 60115-8, JIS C 5201-8, JEITA RC-2144 standards
Suitable for both reflow and flow soldering

Show

ERJ8BWFR100V Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	2 Pin
Case/Package (SI)	3216
Case/Package	1206
Capacitance Tolerance	±1 %
Power Rating	1 W
Part Family	ERJ8BW
Resistance	0.1 Ω
Resistance Tolerance	±1 %
Operating Temperature (Max)	155 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	3.2 mm
Size-Width	1.6 mm
Size-Height	0.65 mm
Temperature Coefficient	±100 ppm/℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
Minimum Packing Quantity	5000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
