Description

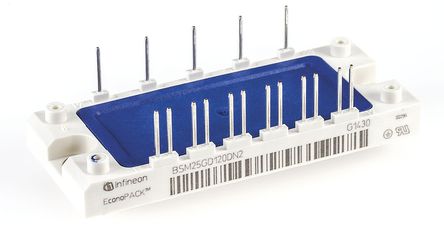

The BSM25GD120DN2 is an IGBT Power Module with fast free wheel diodes and insulated metal base plate.
3-phase Full bridge
130ns Rise time
100ns Fall time
±20V Gate-emitter voltage

Show

BSM25GD120DN2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	17 Pin
Case/Package	EconoPACK
Number of Positions	17 Position
Polarity	N-Channel
Power Dissipation	200 W
Operating Temperature (Max)	125 ℃
Power Dissipation (Max)	200 W
	Show
Size-Length	107.5 mm
Size-Width	45 mm
Size-Height	17 mm
Product Lifecycle Status	Not Recommended for New Design
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
