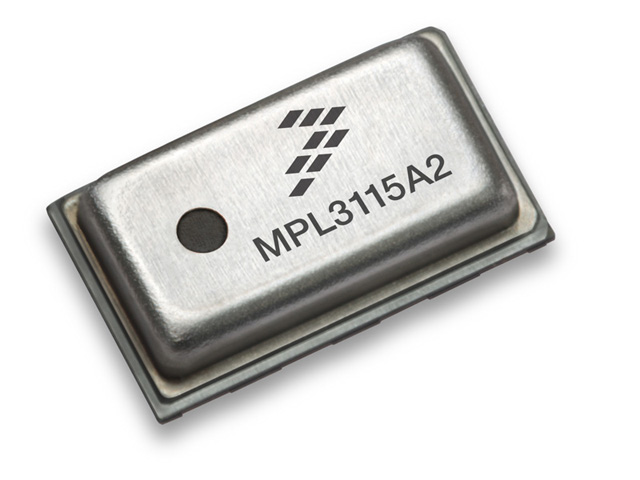

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The Xtrinsic MPL3115A2 employs a MEMS pressure sensor with an I2C interface to provide accurate Pressure/Altitude and Temperature data. The sensor outputs are digitized by a high resolution 24-bit ADC. Internal processing removes compensation tasks from the host MCU system. Multiple user-programmable , power saving, interrupt and autonomous data acquisition modes are available, including programmed acquisition cycle timing, and poll-only modes. Typical active supply current is 40 µA per measurement-second for a stable 10 cm output resolution.
- Fully compensated internally
- Programmable events
- Autonomous data acquisition
- Resolution down to 0.1 m
- 32-sample FIFO
- Ability to log data up to 12 days using the FIFO
- 1 second to 9 hour data acquisition rate
- I2C digital output interface
MPL3115A2 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | TLGA-8 |
| Supply Voltage (DC) | 1.95V (min) |
| Halogen Free Status | Halogen Free |
| Output Voltage | 1.95V ~ 3.9V |
| Supply Current | 40.0 µA |
| Number of Positions | 8 Position |
| Output Voltage (Max) | 1 V |
| Output Voltage (Min) | 0.9 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±1 % |
| Supply Voltage | 2.5 V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 1.95 V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 3 mm |
| Size-Height | 1 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
