Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 8 Pin |

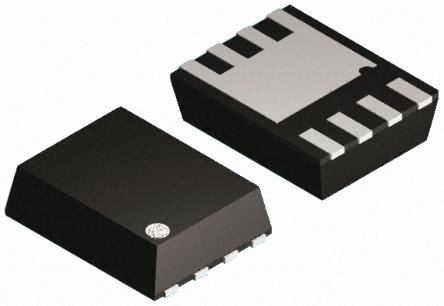

Case/Package | PowerWDFN-8 |
Drain to Source Resistance (on) (Rds) | 0.006 Ω |
Polarity | N-Channel, Dual N-Channel |
Power Dissipation | 1 W |
Threshold Voltage | 1 V |
Drain to Source Voltage (Vds) | 30 V |
Continuous Drain Current (Ids) | 30.0 A |
Input Capacitance (Ciss) | 1750pF @15V(Vds) |
Input Power (Max) | 1 W |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -55 ℃ |
Power Dissipation (Max) | 2.2 W |
Show | |
Size-Length | 5 mm |
Size-Width | 6 mm |
Size-Height | 0.7 mm |
Material | Silicon |
Operating Temperature | -55℃ ~ 150℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/06/15 |
