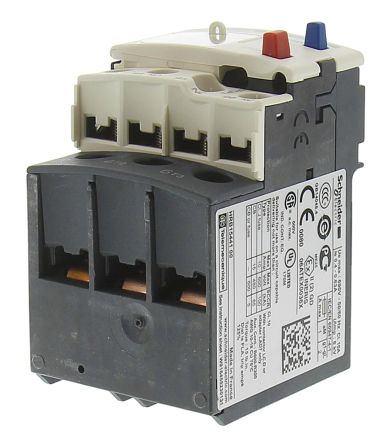

Image is for your reference only,please check specifications for details

LRD04 - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC16224230
Category:
Industrial Relay
Datasheet:
Datasheet 3D Model
Description:
SCHNEIDER ELECTRIC LRD04 Overload Relay, TeSys D, Thermal, 0.4A, 0.63A
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

LRD04 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Current Rating	0.63 A
Contact Current Rating	630 mA
Operating Temperature (Max)	60 ℃
Operating Temperature (Min)	-20 ℃
Supply Voltage	690 VAC
Supply Voltage (Max)	600 V
	Show
Size-Length	123 mm
Size-Width	45 mm
Size-Height	51 mm
Weight	0.124 kg
Operating Temperature	-20℃ ~ 60℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
