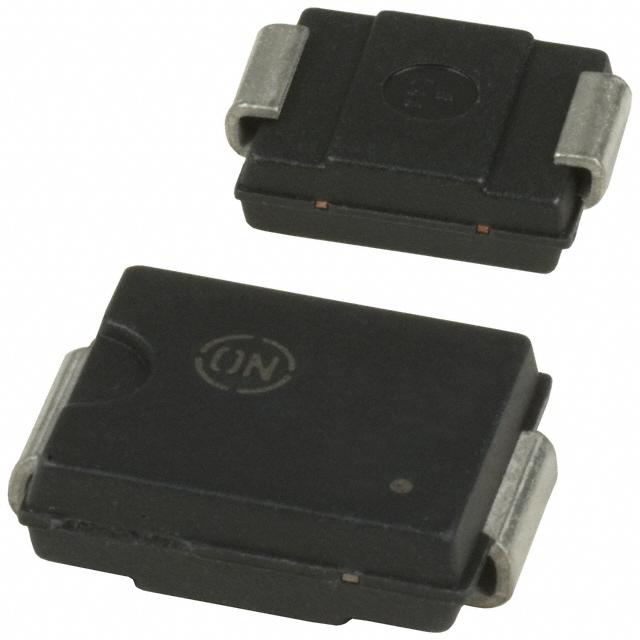

Image is for your reference only,please check specifications for details
Updated at 31/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- SCHOTTKY BARRIER RECTIFIERS 3.0 AMPERES 20, 30, 40, 60 VOLTS
- . . . employing the Schottky Barrier principle in a large area metal–to–silicon power diode. State–of–the–art geometry features epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes, in surface mount applications where compact size and weight are critical to the system.
- •Small Compact Surface Mountable Package with J–Bend Leads
- •Rectangular Package for Automated Handling
- •Highly Stable Oxide Passivated Junction
- •Very Low Forward Voltage Drop
- (0.5 Volts Max @ 3.0 A, TJ= 25°C)
- •Excellent Ability to Withstand Reverse Avalanche Energy Transients
- •Guardring for Stress Protection
MBRS340T3 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SMC |
| Voltage Rating (DC) | 40.0 V |
| Current Rating | 3.00 A |
| Output Current | ≤3.00 A |
| Forward Voltage | 500mV @3A |
| Polarity | Standard |
| Thermal Resistance | 11℃/W (RθJL) |
| Forward Current (Max) | 4 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Show | |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
