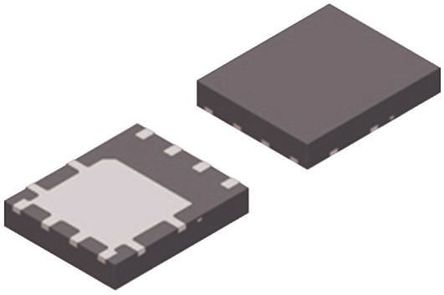

Image is for your reference only,please check specifications for details

Updated at 23/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

N-Channel 40V 31.3A (Ta), 100A (Tc) 2.5W (Ta), 104W (Tc) Surface Mount 8-PQFN (5x6)

Show

FDMS015N04B Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	Power-56-8
Polarity	N-CH
Power Dissipation	2.5 W
Drain to Source Voltage (Vds)	40 V
Continuous Drain Current (Ids)	31.3A
Input Capacitance (Ciss)	8725pF @20V(Vds)
Input Power (Max)	2.5 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.5W (Ta), 104W (Tc)
	Show
Size-Length	5 mm
Size-Width	6 mm
Size-Height	1.05 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
