Description
- Overview of the NLV Series
- FEATURES
- • Resin mold type wound inductor for standard circuits.
- • 0.01 to 470μH, E-12 Series, wide lineup compatible with J (±5%) tolerance, can be used for applications that need to meet strict L tolerance such as filter circuits.
- • Has excellent inductance temperature characteristics in the operating temperature range.
- APPLICATION
- • Smart meters, AV equipment, xDSL, electronic devices for communications infrastructure such as mobile base stations, industrial equipment, other
- • Vehicle accessories (car navigation systems, car audio, ETC)

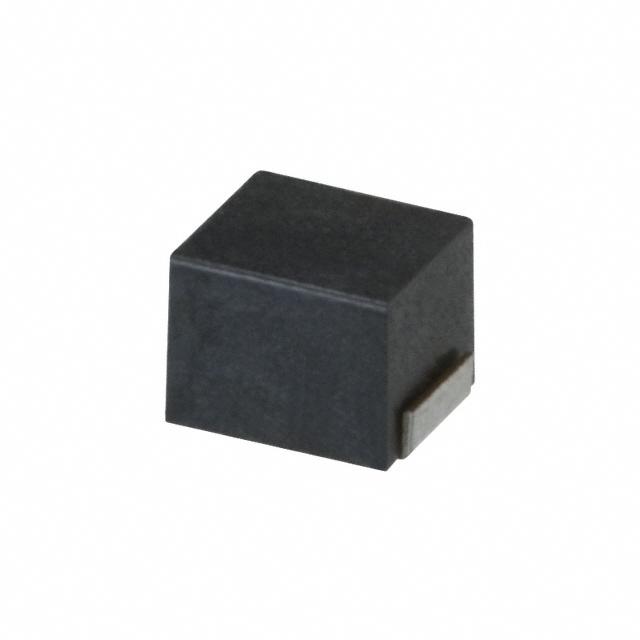

NLV25T-R68J-PF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 2520 |
| Case/Package | 1008 |
| Current Rating | 300 mA |
| Capacitance Tolerance | ±5 % |
| Inductance | 680 nH |
| Self Resonant Frequency | 300 MHz |
| Q-Factor | 30.0 |
| Part Family | NLV-PF |
| Resistance | 850 mΩ |
| Resonant Frequency | 300 MHz |
| Shielding | No |
| Inductance Tolerance | ±5 % |
| Test Frequency | 25.2 MHz |
| DC Resistance (DCR) | ≤850 mΩ |
| Current Rating (DC) | 300 mA |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±5 % |
| Resistance (DC Max) | 0.85 Ω |
| Show | |
| Size-Length | 2.5 mm |
| Size-Width | 2 mm |
| Size-Height | 1.8 mm |
| Weight | 0.025 g |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Not For New Designs |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 2000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
