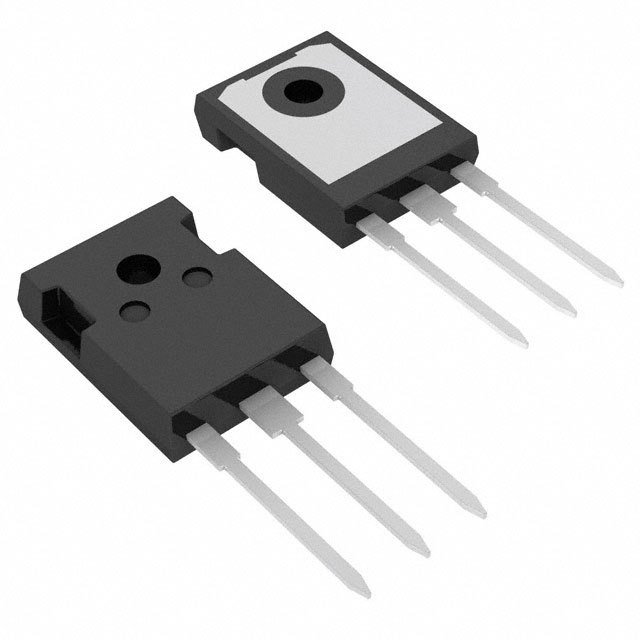

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IRFP450 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-3-3
Voltage Rating (DC)	500 V
Current Rating	14.0 A
Drain to Source Resistance (on) (Rds)	400 mΩ
Polarity	N-Channel
Power Dissipation	190 W
Input Capacitance	2.80 nF
Gate Charge	150 nC
Drain to Source Voltage (Vds)	500 V
Continuous Drain Current (Ids)	14.0 A
Rise Time	47.0 ns
Input Capacitance (Ciss)	2800pF @25V(Vds)
Power Dissipation (Max)	190W (Tc)
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Obsolete
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
