Description

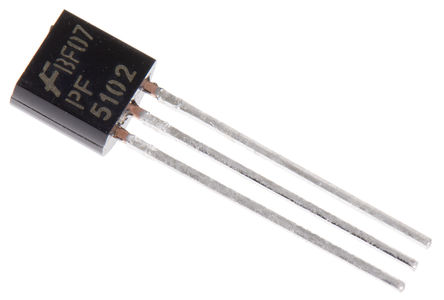

The PF5102 is a 40V N-channel Switch designed for low level analogue switching, sample and hold circuits and chopper stabilized amplifiers. This product is general usage and suitable for many different applications.

Show

PF5102 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Voltage Rating (DC)	40.0 V
Current Rating	50.0 mA
Polarity	N-Channel
Power Dissipation	625 mW
Drain to Source Voltage (Vds)	40.0 V
Continuous Drain Current (Ids)	12.0 mA
Reverse Breakdown Voltage	40 V
Input Capacitance (Ciss)	16pF @15V(Vds)
Input Power (Max)	625 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	625 mW
	Show
Size-Length	5.2 mm
Size-Width	4.19 mm
Size-Height	5.33 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
