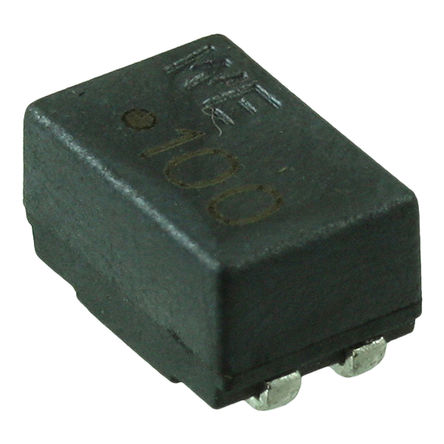

Image is for your reference only,please check specifications for details

744228S - Wurth Electronics
Manufacturer:
Wurth Electronics
ManyChip's Part#:
MC69945993
Category:
Inductor Choke
Package:
60286-3
Datasheet:
Datasheet 3D Model
Description:
WURTH ELEKTRONIK 744228S Filter, Line, Surface Mount, 25μH, WE-SL2 Series, 2.8KΩ, 1A, 9.2mm x 6mm x 5mm
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

25µH @ 1kHz 2 Line Common Mode Choke Surface Mount 2.8 kOhms @ 1kHz 1A DCR 120mOhm

Show

744228S Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	60286-3
Voltage Rating (DC)	80 V
Current Rating	1 A
Inductance	25 µH
Test Frequency	1 kHz
DC Resistance (DCR)	≤120 mΩ
Current Rating (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	600 V
Resistance (DC Max)	120 mΩ
	Show
Size-Length	9.2 mm
Size-Height	5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
