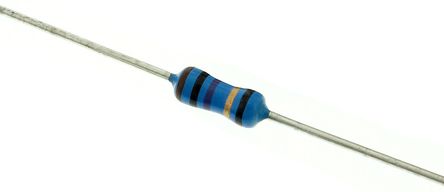

Image is for your reference only,please check specifications for details

RGP0207CHJ100M - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC18036983
Category:
Through-Hole Resistor
Package:
Axial
Datasheet:
Datasheet 3D Model
Description:
Resistor; Thick Film; Res 100 Megohms; Pwr-Rtg 0.25W(1/4W); Tol 5%; Axial
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Metal glaze resistors are manufactured using thick film techniques. The ceramic slugs have the thick film applied, the film is fired and end caps forced onto the slugs, the resistive element is spiralled to value and lead wires are welded onto the ends caps. Four layers of coating are applied — the first being phenolic resin, the other three being epoxy.
**Features:**
* The Thick Film is Suitable for the Manufacture of Very High Resistance Values and for High Voltage Working Components
* The Combination of High Values and High Working Voltage Makes Theses Components Ideally Suited for Such Applications as TVs Electrical Measuring Equipment Etc...
* Thick Film Metal Glaze Series for High Ohmic Values and High Voltage Surge rating with a Range Up to 10 GΩ

Show
