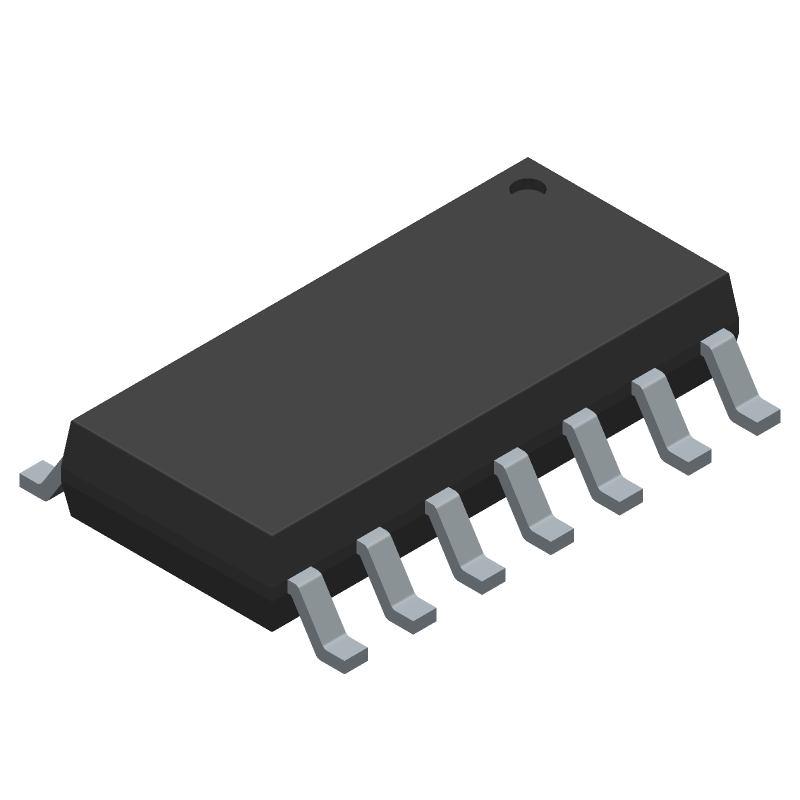

FAN7391MX - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC47850203
Category:
FET Driver
Package:
SOP-14
Datasheet:
Datasheet 3D Model
Description:
Driver 600V 4.5A 1Out High and Low Side Half Brdg Non-Inv 14Pin SO N T/R
Stock Locations:
Availability:
226 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.82

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FAN7391 is a monolithic high- and low-side gate-drive IC, which can drive high-speed MOSFETs and IGBTs that operate up to +600 V. It has a buffered output stage with all NMOS transistors designed for high pulse current driving capability and minimum cross-conduction.Fairchild"s high-voltage process and common-mode noise-canceling techniques provide stable operation of the high-side driver under high-dv/dt noise circumstances. An advanced level-shift circuit offers high-side gate driver operation up to V = 15V. The advanced input filter of HIN provides protection against short-pulsed input signals caused by noise.The UVLO circuits prevent malfunction when V are lower than the specified threshold voltage. The high-current and low-output voltage-drop feature makes this device suitable for the PDP sustain pulse driver, motor driver, switching mode power supply, and high-power DC-DC converter applications.
Features
---
|
Floating Channel for Bootstrap Operation to +600V
Typically 4.5A/4.5A Sourcing/Sinking Current Driving Capability
Common-Mode dv/dt Noise-Cancelling Circuit
Built-in Under-Voltage Lockout for Both Channels
Built-in Advanced Input Filter
Matched Propagation Delay for Both Channels
Logic(VSS) and Power (COM) Ground ±5V Offset
3.3V and 5V Input Logic Compatible
Output In-Phase with Input
